Marin Nail Trail E1 E-MTB

BOOSTED TRAIL RIDING AT IT'S FINEST!!!!

Marin Nail Trail E1 E-MTB

Item #nb-marin-nailtraile1

$3,359.00

Shimano E-Steps 500 Wh

Rockshox Recon 140mm Travel

27.5+ Wheels

Shimano Deore 10-speed

Shimano Hydraulic Disc

This bike is ready to ride!

Available in Small,Medium,Large

11-7 M-Sat at Bike Farm

BUY,SELL,TRADE



In Stock
Clear
We accept:
Categories: , ,

Description

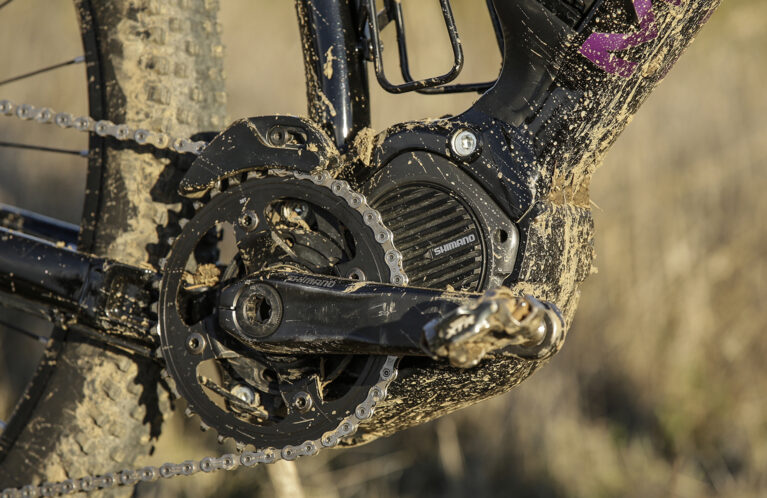

20 Nlt E Tech Steps

SHIMANO STEPS ELECTRIC ASSIST

Shimano’s STEPS system is neatly integrated into the frame, with a lockable and removable battery pack that fully charges in five hours from a standard wall outlet.

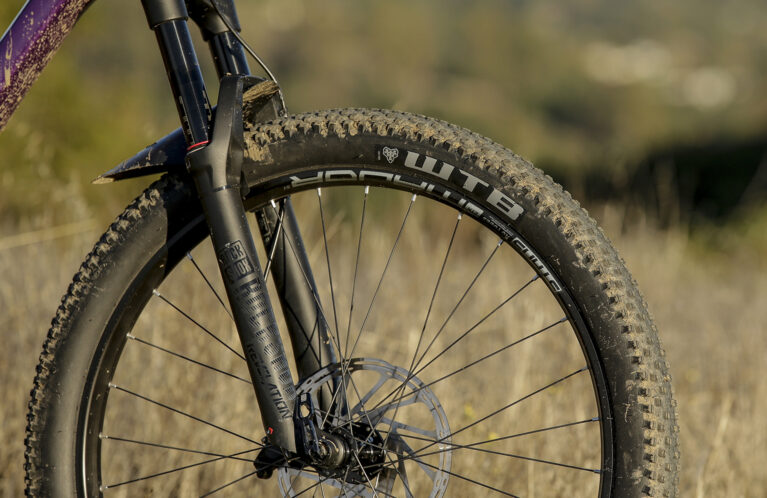

20 Nlt E Tech Suspension

FRONT SUSPENSION

Both Nail Trail E and Pine Mountain E models are spec’d with stout 140mm or 120mm travel forks and front and rear thru axles for maximum control and stiffness on the trail.

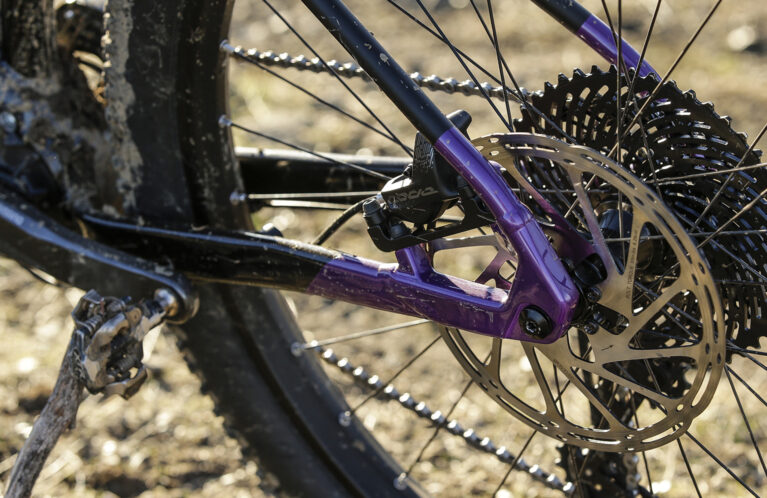

20 Nlt E Tech Wheels

27.5+ WHEELS

Large volume 27.5+ roll fast with roughly the same outside diameter as a 29” tire but with extra tire width and air volume

FRAME

Series 3 E 6061 Aluminim, 27.5+ wheels, Post mount, forged drop outs, 148×12 thru axle

FORK

RockShox Recon RL 27.5+, 140mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset

RIMS

Marin Aluminum Double Wall, 38mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

HUB REAR

Forged Alloy, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H

HUB FRONT

Forged Alloy, 110x15mm, 6-Bolt Disc, 32H

SPOKES

14g Black Stainless Steel

TIRES

Vee Tire, Crown Gem 27.5×2.8″, Dual Control Compound, Synthesis Sidewall, Folding Bead, Tubeless Compatible

DERAILLEUR REAR

Shimano Deore Shadow Plus Direct Mount 10-Speed

DERAILLEUR FRONT

SHIFT LEVER

Shimano Deore

CRANKSET

Marin Forged Alloy, Steel Narrow-Wide 38T Chainring

MOTOR

Shimano STEPS E8000

CHAIN

KMC X10

CASSETTE

SunRace 10-Speed, 11-46T

BRAKES FRONT

Shimano BR-MT201 Hydraulic Disc, 203mm Rotor

BRAKES REAR

Shimano BR-MT201 Hydraulic Disc, 203mm Rotor

BRAKE LEVERS

Shimano BR-MT201 Hydraulic Disc

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin Single Clamp Locking

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8″ x 1 1/2”

SEATPOST

TranzX YSP18 Dropper Post, 120mm of Travel, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

Nylon Platform

EXTRAS

Bolt-on Thru-Axle

BATTERY

Shimano E8010, 500Wh

Additional information

Bike Type

All New Bikes, E-bike, Mountain

Bikes by Size

Large, Medium, Small

Brands

Marin
